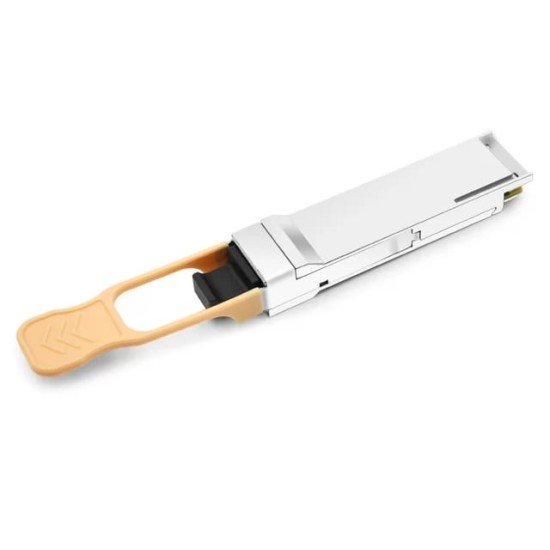

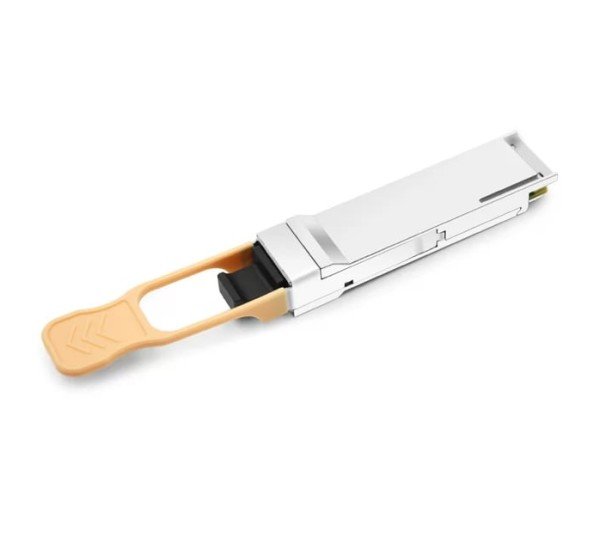

Ciena QSFP28-SR4 100G Module
The Ciena QSFP28-SR4 100G module offers ultra-fast data transfer rates for high-demand networks, delivering 100Gbps over short-range fiber with a reach of up to 100 meters. Perfect for data centers and enterprise networks, this compact and energy-efficient QSFP28 module ensures reliable, high-performance connectivity. If you're looking for a robust, future-proof solution for your 100G network, the Ciena QSFP28-SR4 is the ideal choice, combining performance with unmatched Ciena quality.
Ciena QSFP28-SR4 Full Specification
| Specification |
Details |
| Model |
Ciena QSFP28-SR4 100G |
| Form Factor |
QSFP28 |
| Data Rate |
100 Gbps |
| Wavelength |
850 nm |
| Connector Type |
MPO/MTP |
| Cable Type |
Multimode Fiber (MMF) |
| Reach Distance |
Up to 100m (OM4 MMF) / 70m (OM3 MMF) |
| Power Consumption |
≤ 3.5W |
| Temperature Range |
0°C to 70°C (Commercial) |
| Protocols Supported |
IEEE 802.3bm, 100GBASE-SR4 |
| Modulation |
NRZ (Non-Return to Zero) |
| Transmitter Type |
VCSEL (Vertical Cavity Surface Emitting Laser) |
| Receiver Type |
PIN Photodiode |
| Bit Error Rate (BER) |
1E-12 |
| Digital Diagnostics |
Yes, via I2C |
| Compliance Standards |
MSA (Multi-Source Agreement), RoHS |
Ciena QSFP28-SR4 Description
The Ciena QSFP28-SR4 100G Transceiver module is a high-performance, cost-effective optical transceiver designed for 100 Gigabit Ethernet (100GbE) applications. It is built on the QSFP28 form factor, which provides a compact, energy-efficient solution for data centers, enterprise networking, and high-speed computing environments. The module operates at 850nm and is optimized for use with multi-mode fiber (MMF), supporting a reach of up to 100 meters with OM4 fiber and 70 meters with OM3 fiber. It employs 4 parallel fiber lanes, each operating at 25 Gbps, to achieve a combined data rate of 100 Gbps. The use of VCSEL (Vertical Cavity Surface Emitting Laser) technology for transmission and PIN photodiodes for reception ensures reliable high-speed data transmission with low power consumption, making it ideal for short-reach interconnects in large-scale data centers. The Ciena QSFP28-SR4 module is compliant with the IEEE 802.3bm 100GBASE-SR4 standard and adheres to the QSFP28 MSA (Multi-Source Agreement), ensuring interoperability with a wide range of networking equipment. It supports Digital Diagnostics Monitoring (DDM) through an I2C interface, enabling real-time monitoring of key operating parameters such as temperature, voltage, and optical power levels. With low latency, high bandwidth, and power efficiency (≤ 3.5W), the module is well-suited for high-performance computing (HPC), cloud computing, and data center environments. It is also hot-pluggable, allowing for easy installation and replacement without disrupting network operations. Compared to single-mode optics, the QSFP28-SR4 provides a more cost-effective solution for short-range connectivity, eliminating the need for expensive single-mode transceivers and reducing overall infrastructure costs. It is particularly beneficial for leaf-spine architectures and rack-to-rack interconnects in modern data centers. Overall, the Ciena QSFP28-SR4 100G module delivers high-speed, reliable, and cost-effective connectivity for short-range networking applications, making it a preferred choice for organizations looking to upgrade their network infrastructure to 100G speeds.
Supported/Comparable Models
The Ciena QSFP28-SR4 100G optical transceiver module is compatible with a range of other QSFP28 100G SR4 transceivers from various vendors, including:
- Cisco QSFP-100G-SR4-S
- Juniper JNP-QSFP-100G-SR4
- Arista QSFP-100G-SR4
- Brocade 100G-QSFP28-SR4
- HPE JL308A
- Dell Networking QSFP28-100G-SR4
- Mellanox MC2210511-SR4
- Intel E40GQSFPSR4
Get in Touch with Datacom Technologies (BD)
?
Call/WhatsApp: 01748173213
✉
Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Ciena QSFP28-SR4 100G Module in Bangladesh?
The latest price of
Ciena QSFP28-SR4 100G Module in Bangladesh starts from
BDT-55,000/= to BDT-85,000/= (Estimated) depending on quantity and warranty. To order your Ciena Transceiver, please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop "Datacom Technologies (BD)" and order your Ciena SFP Transceiver.
Explore More Ciena SFP & QSFP Modules
We provide a full range of Ciena SFP and QSFP optical transceiver modules, including 10G, 25G, 40G, 50G, 100G, 200G, and 400G options. To discover more, simply search for "Ciena SFP" or "Ciena QSFP" in our catalog. For more information, feel free to
contact us.
