Description

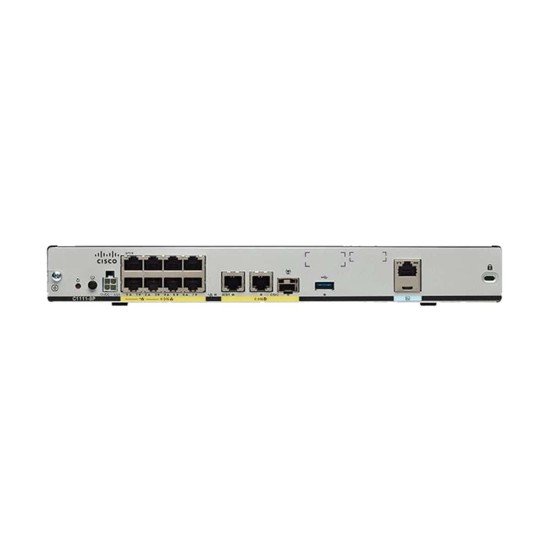

Cisco 1100 Series Ethernet Routers – C1111-8P
Specification
| Feature | Details |
|---|---|
| Model | Cisco C1111-8P |
| Series | Cisco 1100 Series Integrated Services Routers (ISR) |
| CPU | Quad-Core 1.4 GHz ARM Processor |
| RAM | 4 GB DDR4 |
| Storage | 8 GB Flash (Expandable) |
| Ethernet Ports | 8 x Gigabit RJ45 LAN (PoE) + 2 x Gigabit WAN |
| PoE Support | 8 x 802.3af/at PoE Ports (Max 120W Power Budget) |
| Routing Performance | Up to 1 Gbps with services enabled |
| Switching | Integrated Layer 2 and Layer 3 switching |
| VPN Support | IPSec, DMVPN, FlexVPN, SSL VPN, GRE, L2TP |
| Security Features | Firewall, Zone-Based Policy, Threat Defense |
| QoS | Application-aware traffic prioritization |
| Redundancy | Dual WAN for failover, LTE support (optional) |
| Management | Cisco IOS XE, Web UI, CLI, Cisco DNA Center |
| Power Supply | External AC Adapter, PoE Power Support |
| Form Factor | Desktop or Rack-Mountable (1U) |
| Operating System | Cisco IOS XE |
| Use Case | Enterprise branch offices, SMBs, Remote Workers |
Description
The Cisco C1111-8P is a high-performance, PoE-enabled enterprise router from the Cisco 1100 Series ISR (Integrated Services Routers) family. Designed for branch offices, SMBs, and remote locations, this router delivers robust security, advanced routing, and integrated switching in a compact form factor.
Equipped with 8 Gigabit LAN ports with full PoE support (802.3af/at) and 2 Gigabit WAN ports, the C1111-8P provides flexible connectivity for wired networks, IP phones, security cameras, and access points. It supports a PoE budget of up to 120W, making it ideal for powering multiple PoE-enabled devices.
Running on Cisco IOS XE, the router offers enterprise-grade security features like Zone-Based Firewall (ZBF), IPSec VPN, Secure Boot, and Advanced Threat Defense, ensuring network protection against cyber threats. The integrated Layer 2/3 switch enhances LAN connectivity, reducing the need for external switches.
With support for dual WAN links, optional LTE backup, and QoS features, the C1111-8P ensures uninterrupted business operations with optimized application performance. It can be managed via CLI, Web UI, Cisco DNA Center, and Cisco SD-WAN for seamless network monitoring and automation.
Ideal for small businesses, branch offices, and service provider deployments, the Cisco C1111-8P delivers high-speed routing, security, and PoE functionality in one cost-effective solution.
Key Features
- Performance & Speed: High-performance routing with Gigabit Ethernet interfaces.
- Integrated Security: Advanced security features, including VPN, firewall, and intrusion prevention.
- Power over Ethernet (PoE): 8 PoE ports for powering IP phones, cameras, and other devices.
- Modular Design: Flexible WAN connectivity options, including LTE and DSL.
- Cloud and SD-WAN Ready: Supports Cisco SD-WAN for centralized cloud management.
- Reliability: Enterprise-grade reliability and consistent uptime.
- Compact Form Factor: Designed for small offices, remote branches, and edge networking.
Where It Can Be Used?
- Small and Medium-Sized Businesses (SMBs): Ensures secure, high-speed connectivity.
- Branch Offices: Ideal for extending corporate networks to remote locations.
- Retail & Hospitality: Supports PoE for POS systems, security cameras, and wireless access points.
- Educational Institutions: Provides reliable connectivity for e-learning and administration.
- Healthcare: Ensures secure data transfer between hospital networks and remote clinics.
Installation Steps
- Unboxing & Inspection: Check for all components, including power cables, mounting brackets, and documentation.
- Physical Installation: Mount the router in a rack or place it on a secure surface.
- Connecting Cables: Connect power and turn on the router. Plug in WAN and LAN cables. Connect PoE devices (if needed).
- Accessing the Router: Use a console cable or web interface to configure initial settings. Login using default credentials (change for security).
- Basic Configuration: Set up IP addressing, VLANs, and security settings. Enable WAN connectivity and configure VPN if needed.
- Testing & Deployment: Ensure network stability and connectivity.
User Experience
- Ease of Use: Intuitive web-based GUI and CLI for advanced users.
- High Security: Built-in threat protection and encrypted VPN support.
- Seamless Connectivity: Fast, uninterrupted performance for critical applications.
- Scalability: Easily integrates with existing Cisco infrastructure.
- Remote Management: Cloud-based monitoring and troubleshooting via Cisco DNA Center.
Why Choose Cisco 1100 Series Ethernet Routers – C1111-8P?
- Industry-Leading Security: Protects against cyber threats with Cisco’s advanced security features.
- High Performance: Ensures smooth data flow for businesses of all sizes.
- Future-Proof: Supports SD-WAN, cloud services, and IoT expansion.
- Reliable Support: Backed by Cisco’s robust technical assistance and long-term software updates.
- Cost-Effective: Delivers enterprise-level features at a competitive price point.
Buy Cisco 1100 Series Ethernet Routers – C1111-8P at the Best Price from Datacom BD Online
In Bangladesh, you can get original Ubiquiti ER-12P EdgeRouter Router From Datacom. We have a large collection of latest Cisco Routers – C1111-8P to purchase. Order Online Or Visit our Office to get yours at lowest price. The Cisco 1100 Series Ethernet Routers – C1111-8P comes with 1-year warranty.
Get in Touch with Datacom Technologies (BD)
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Cisco 1100 Series Ethernet Routers – C1111-8P in Bangladesh?
The latest price of Cisco 1100 Series Ethernet Routers – C1111-8P Tk 95,000 (Estimated). You can buy the Cisco 1100 Series Ethernet Routers – C1111-8P at best price from our website visit of our Office.
