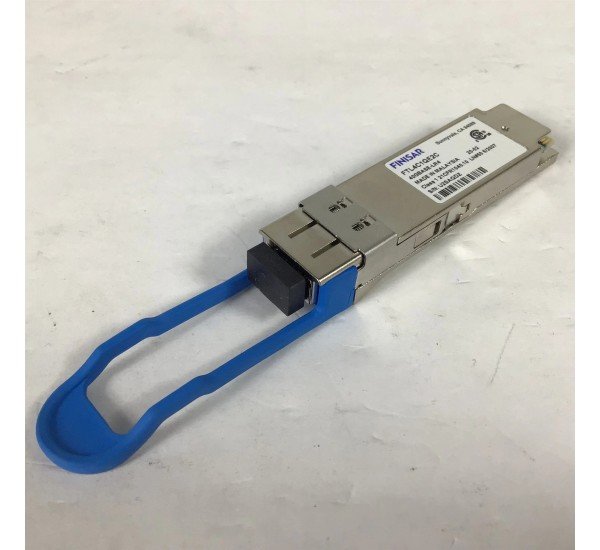

Finisar FTL4C1QE2C Gen2 QSFP-40GBase-LR4 10km 1310nm LC Transceiver

About Finisar FTL4C1QE2C Gen2 QSFP-40GBASE-LR4 10km 1310nm LC Transceiver in Bangladesh

The Finisar FTL4C1QE2C Gen2 QSFP-40GBASE-LR4 is a high-performance 40Gbps optical transceiver designed for long-reach 40 Gigabit Ethernet connectivity over single-mode fiber. It complies with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 standards and provides up to 10km transmission over suitable single-mode fiber. The module uses a 1310nm-band optical architecture and duplex LC connectivity. :contentReference[oaicite:0]{index=0}

The FTL4C1QE2C uses an uncooled four-channel 10Gb/s CWDM transmitter architecture to transport the aggregate 40Gbps signal over a duplex single-mode fiber connection. Its 41.2Gbps aggregate data rate and XLPPI electrical interface make it suitable for high-bandwidth networking applications including data center interconnects, enterprise backbones, metro networks, and switch-to-switch connectivity. :contentReference[oaicite:1]{index=1}

Unlike 40GBASE-SR4 QSFP+ modules, which are designed for short-reach multimode fiber and typically use MPO/MTP connectors, the FTL4C1QE2C is an LR4 module designed for single-mode fiber and uses duplex LC receptacles. This makes it appropriate for longer-distance 40G optical links where an LC-based single-mode fiber infrastructure is available.

The Finisar FTL4C1QE2C supports a maximum link distance of 10km on single-mode fiber. The module is hot-pluggable, operates from a single 3.3V supply, and provides digital diagnostic functions through an I2C management interface. :contentReference[oaicite:2]{index=2}

Finisar FTL4C1QE2C Gen2 QSFP-40GBASE-LR4 Specifications & Features

Overview

The Finisar FTL4C1QE2C is a Gen2 40GBASE-LR4 QSFP+ optical transceiver designed for 40Gbps Ethernet links over single-mode fiber. It combines four 10Gb/s optical channels using CWDM technology and presents the aggregate connection through a compact QSFP+ host interface. The manufacturer specifies a 41.2Gbps aggregate data rate and a maximum 10km link distance on single-mode fiber. :contentReference[oaicite:3]{index=3}

The module is well suited to network environments where 40Gbps connectivity must extend beyond the typical range of multimode SR4 optics. Its duplex LC interface also allows it to connect directly to standard duplex single-mode fiber infrastructure without requiring an MPO/MTP parallel-fiber assembly.

Buy Finisar FTL4C1QE2C Gen2 40GBASE-LR4 in Bangladesh

Purchase the Finisar FTL4C1QE2C Gen2 QSFP-40GBASE-LR4 10km 1310nm LC Transceiver from Datacom Technologies (BD). We supply Finisar optical transceivers, QSFP+ modules, SFP/SFP+ optics, fiber-optic networking products, enterprise switches, data center equipment, and high-speed optical connectivity solutions with competitive pricing, technical consultation, deployment assistance, and nationwide delivery throughout Bangladesh.

Key Features

• 40Gbps high-speed optical connectivity
• 40GBASE-LR4 long-reach optical technology
• Gen2 QSFP+ form factor
• 1310nm optical wavelength band
• Four-channel CWDM optical architecture
• 4 × 10Gb/s optical transmission
• Up to 10km transmission over single-mode fiber
• Duplex LC optical connector
• XLPPI electrical interface
• 41.2Gbps aggregate data rate
• Hot-pluggable QSFP+ design
• Digital diagnostic monitoring through I2C
• 3.3V single power supply
• Maximum power consumption below 3.5W

Applications

• 40G Data Center Interconnect
• Long-Distance Data Center Networking
• Enterprise Backbone Networks
• Metro Network Connectivity
• 40G Switch-to-Switch Links
• 40G Router-to-Router Connectivity
• Enterprise Core Networking
• Telecom Network Infrastructure
• Single-Mode Fiber Network Upgrades
• High-Bandwidth Network Expansion

40GBASE-LR4 Optical Technology

40GBASE-LR4 is a long-reach 40Gbps Ethernet optical technology designed for single-mode fiber. The Finisar FTL4C1QE2C uses four 10Gb/s optical channels combined using CWDM technology, allowing the aggregate 40Gbps signal to travel through a duplex single-mode fiber connection. The module is compliant with IEEE 802.3ba 40GBASE-LR4. :contentReference[oaicite:4]{index=4}

This architecture makes the FTL4C1QE2C particularly useful for longer 40G links between data centers, network aggregation points, enterprise facilities, and other locations where short-reach multimode optics are insufficient.

1310nm Optical Technology

The FTL4C1QE2C operates in the 1310nm optical band. Its four optical channels are multiplexed through CWDM technology inside the module, allowing the 40Gbps signal to be transmitted over a duplex single-mode fiber pair. :contentReference[oaicite:5]{index=5}

The optical design is intended for extended-distance single-mode fiber connectivity and provides a maximum specified link distance of 10km on suitable SMF. :contentReference[oaicite:6]{index=6}

Duplex LC Single-Mode Fiber Connectivity

The Finisar FTL4C1QE2C uses duplex LC receptacles and duplex single-mode fiber. One fiber is used for transmission and the other for reception, while the four optical wavelengths are multiplexed internally within the transceiver.

This makes the module a practical choice for installations that already use duplex LC single-mode fiber infrastructure. The complete optical channel should be checked for fiber attenuation, connector loss, splice loss, optical budget and total link distance before deployment.

QSFP+ Form Factor

The compact QSFP+ form factor enables high-density 40Gbps connectivity in compatible switches, routers, network adapters and optical transport platforms. The module is hot-pluggable and follows the QSFP+ MSA interface requirements. :contentReference[oaicite:7]{index=7}

The pluggable architecture simplifies optical module installation, replacement, maintenance and network expansion on supported host platforms.

Digital Diagnostic Monitoring

The FTL4C1QE2C provides digital diagnostic functions through an I2C management interface. The supported monitoring functions include transmitter and receiver optical power monitoring, helping network administrators troubleshoot optical links and monitor module operating conditions. :contentReference[oaicite:8]{index=8}

Compatibility

• Compatible 40G QSFP+ switches
• Compatible 40G QSFP+ routers
• Compatible Finisar-supported networking platforms
• Compatible data center networking equipment
• Compatible enterprise core networking equipment
• Compatible optical transport platforms with QSFP+ interfaces
• Duplex single-mode fiber infrastructure

Actual compatibility depends on the host equipment model, firmware, transceiver coding, supported optics list and platform requirements. Always verify the exact host device before purchasing or installing the module.

Benefits

• 40Gbps high-bandwidth optical connectivity
• Up to 10km reach over single-mode fiber
• 1310nm CWDM optical architecture
• Duplex LC connectivity
• Compact QSFP+ form factor
• Suitable for long-distance 40G Ethernet
• Useful for data center interconnects
• Suitable for enterprise and metro networks
• Digital diagnostic monitoring
• Hot-pluggable optical module design

Finisar FTL4C1QE2C vs 40GBASE-SR4

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies networking and data center infrastructure products in Bangladesh, including Finisar optical transceivers, QSFP+ modules, SFP/SFP+ optics, fiber-optic equipment, enterprise switches, server networking components, and high-speed optical connectivity solutions. Customers can receive competitive pricing, technical consultation, deployment assistance and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Finisar FTL4C1QE2C?
The FTL4C1QE2C is a Gen2 40GBASE-LR4 QSFP+ optical transceiver designed for 40Gbps Ethernet over single-mode fiber.

Q2: What is the data rate?
The module supports a maximum aggregate data rate of 41.2Gbps, suitable for 40 Gigabit Ethernet applications. :contentReference[oaicite:9]{index=9}

Q3: What wavelength does the FTL4C1QE2C use?
The module operates in the 1310nm optical wavelength band. :contentReference[oaicite:10]{index=10}

Q4: What is the maximum transmission distance?
The maximum specified link distance is 10km over suitable single-mode fiber. :contentReference[oaicite:11]{index=11}

Q5: What type of fiber does it use?
The FTL4C1QE2C is designed for duplex single-mode fiber.

Q6: What connector does the Finisar FTL4C1QE2C use?
It uses duplex LC optical receptacles. :contentReference[oaicite:12]{index=12}

Q7: Is the FTL4C1QE2C a 40GBASE-SR4 module?
No. It is a 40GBASE-LR4 module designed for long-reach single-mode fiber. SR4 modules are intended for short-reach multimode fiber and normally use MPO/MTP connectivity.

Q8: Is the FTL4C1QE2C suitable for data center interconnects?
Yes. Its 10km single-mode fiber reach makes it suitable for extended 40G links between network locations and data center facilities.

Q9: Does the module support digital diagnostics?
Yes. Digital diagnostic functions are available through the I2C management interface, including optical monitoring functions. :contentReference[oaicite:13]{index=13}

Q10: What is the power consumption?
The maximum specified power consumption is below 3.5W. :contentReference[oaicite:14]{index=14}

Q11: Is the FTL4C1QE2C hot-pluggable?
Yes. The module uses a hot-pluggable QSFP+ form factor, although actual hot-plug behavior depends on the host equipment. :contentReference[oaicite:15]{index=15}

Q12: Where can I buy the Finisar FTL4C1QE2C in Bangladesh?
You can contact Datacom Technologies (BD) for Finisar 40G QSFP+ LR4 optical transceivers, SFP/SFP+ modules, fiber-optic networking products, data center equipment and high-speed optical connectivity solutions with competitive pricing and nationwide delivery.
