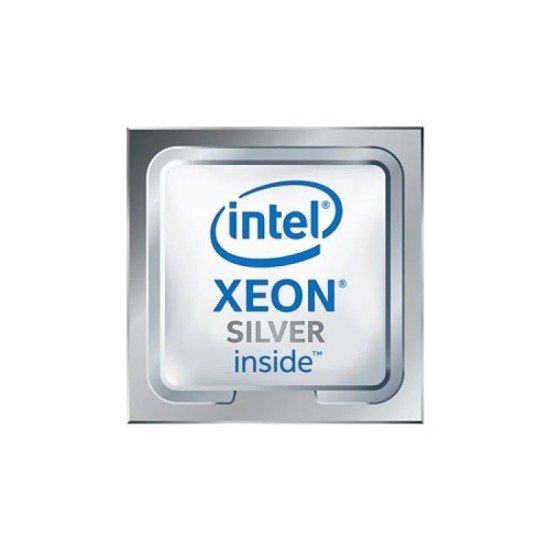

Intel Xeon Silver 4316 Server Processor

Intel Xeon Silver 4316 Server Processor

The Intel Xeon Silver 4316 Server Processor, built on the Ice Lake architecture, delivers powerful performance with 20 cores, 40 threads, and a base clock of 2.30 GHz. Supporting DDR4-3200 memory up to 1TB per socket and PCIe 4.0 with 64 lanes, it’s designed for demanding server workloads. With 30MB Intel Smart Cache and a 150W TDP, the Xeon Silver 4316 offers exceptional scalability, speed, and efficiency for modern data centers.

Specification

Specification	Details
Model	Intel Xeon Silver 4316
Codename	Ice Lake
Launch Date	Q2 2021
Socket	LGA 4189
Cores / Threads	20 Cores / 40 Threads
Base Clock Speed	2.30 GHz
Max Turbo Frequency	3.40 GHz
Cache	30 MB Intel Smart Cache
TDP (Thermal Design Power)	150W
Memory Support	DDR4-3200, up to 1 TB per socket
Memory Channels	8
PCIe Version	PCIe 4.0
Max PCIe Lanes	64
Lithography	10nm
Scalability	2S (supports dual-socket systems)
ECC Memory Support	Yes
Virtualization Support	Intel VT-x, VT-d

Description

The Intel Xeon Silver 4316 is a powerful server-grade processor from Intel’s 3rd Generation Xeon Scalable family, codenamed Ice Lake. Engineered with 20 physical cores and 40 threads, it delivers excellent multi-threaded performance ideal for demanding enterprise workloads such as virtualization, database management, and large-scale data processing. With a base clock of 2.30 GHz and a turbo boost up to 3.40 GHz, it strikes a balance between performance and power efficiency. Built on Intel’s advanced 10nm process, the Xeon Silver 4316 brings significant improvements in IPC (Instructions Per Cycle) compared to its predecessors. It supports 8 memory channels and DDR4-3200 memory, allowing up to 1 TB of memory per socket, ensuring high bandwidth and capacity for memory-intensive applications. The processor is equipped with 64 PCIe 4.0 lanes, enabling faster I/O and storage options. Designed for dual-socket scalability, it is well-suited for mid-range to high-end servers where reliability and scalability are key. With built-in support for ECC memory, Intel VT-x, and VT-d, it enhances system stability and virtualization capabilities. The Xeon Silver 4316 is a robust and energy-efficient solution, making it a solid choice for modern data centers and cloud infrastructures.

Key Features:

1. Core Configuration:

• 16 cores and 32 threads, providing excellent multi-threaded performance.

2. Base and Turbo Frequency:

• 2.4 GHz base frequency with a turbo boost of up to 3.3 GHz, ensuring efficient performance during heavy workloads.

3. Cache Memory:

• 24.75 MB Intel Smart Cache, improving access speed to frequently used data.

4. Thermal Design Power (TDP):

• 120W, offering a balance of power consumption and performance.

5. Intel Deep Learning Boost (DL Boost):

• Enhances performance for AI and machine learning workloads.

6. Advanced Security:

• Integrated with Intel’s hardware-enhanced security features like Intel SGX (Software Guard Extensions).

7. Support for DDR4 Memory:

• Supports up to 128GB of DDR4 3200 MHz memory.

8. Scalability:

• Compatible with Intel’s Xeon Scalable family, providing flexibility to scale as needed.

9. Intel QuickAssist Technology (QAT):

• Accelerates workloads such as encryption and compression tasks.

Installation Steps:

1. Preparation:

• Ensure you have an appropriate motherboard that supports the Intel Xeon Scalable processors.
• Gather necessary tools like thermal paste, a compatible CPU cooler, and an anti-static wristband.

2. Install the Processor:

• Carefully open the CPU socket latch on the motherboard.
• Place the processor into the socket, ensuring the alignment key is correctly positioned.
• Close the latch to secure the processor in place.

3. Apply Thermal Paste:

• Apply a small, pea-sized amount of thermal paste to the top of the processor.

4. Install the Cooling Solution:

• Attach the CPU cooler (ensure it is compatible and can handle the TDP).

5. Install Memory (Optional):

• Insert the RAM modules into the appropriate memory slots, ensuring they are correctly seated.

6. Power Up and Verify:

• Boot the system and enter BIOS to verify the CPU is recognized and running at the correct speeds.
• Monitor system temperatures and fan speeds to ensure everything is operating correctly.
