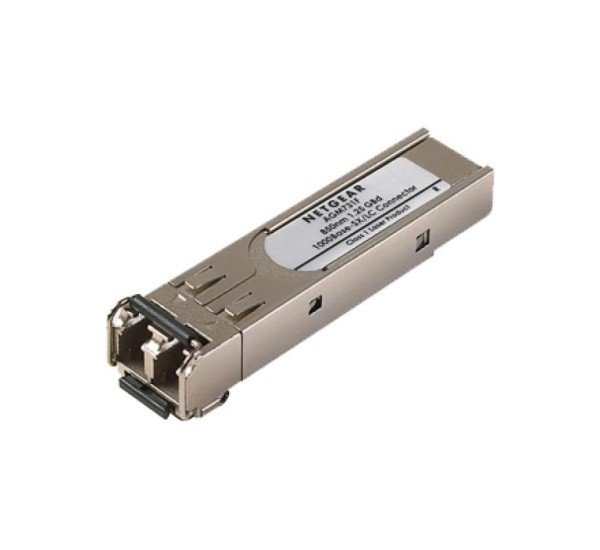

About NETGEAR AGM731F 1Gbps 1000BASE-SX Multimode SFP Transceiver in Bangladesh
The NETGEAR AGM731F is a 1Gbps 1000BASE-SX multimode fiber SFP optical transceiver designed for Gigabit Ethernet connectivity across compatible NETGEAR managed and smart switches. It provides a compact and reliable optical interface using a duplex LC connector and 850nm multimode fiber technology.
The AGM731F is designed for short-reach Gigabit Ethernet fiber links and supports distances of up to 1,000 meters over laser-optimized OM4 multimode fiber, 550 meters over OM3 fiber and 275 meters over OM1 fiber. NETGEAR identifies AGM731F as its ordering part number for the 1000BASE-SX SFP transceiver. ([NETGEAR](https://www.netgear.com/business/wired/switches/accessories/agm731f/))
NETGEAR AGM731F Specifications & Features
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | AGM731F |
| Product Type | 1Gb Ethernet SFP Fiber Transceiver |
| Data Rate | 1Gbps |
| Ethernet Standard | IEEE 802.3z 1000BASE-SX |
| Form Factor | SFP |
| Fiber Type | Multimode Fiber (MMF) |
| Wavelength | 850nm |
| Connector | Duplex LC |
| Maximum Reach | 1,000m on OM4 |
| OM3 Reach | 550m |
| OM1 Reach | 275m |
| Interface | SFP |
| Hot-Swappable | Yes |
| Power Consumption | 1.1W |
| Operating Temperature | -5°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 85% at 25°C |
| Environmental Compliance | RoHS |
Overview
The NETGEAR AGM731F provides Gigabit Ethernet connectivity over multimode optical fiber. It is designed for compatible SFP slots in NETGEAR managed switches and provides a standards-based 1000BASE-SX fiber interface.
The module is particularly suitable for data-center, enterprise LAN and campus network environments where short- to medium-distance 1Gbps fiber connectivity is required.
Buy NETGEAR AGM731F in Bangladesh
Purchase the NETGEAR AGM731F 1Gbps 1000BASE-SX Multimode SFP Transceiver from Datacom Technologies (BD). We supply NETGEAR networking accessories, SFP/SFP+ transceivers, managed switches, enterprise networking hardware and data-center connectivity products in Bangladesh.
Key Features
- 1Gbps Gigabit Ethernet connectivity
- 1000BASE-SX optical standard
- IEEE 802.3z compliant
- 850nm optical wavelength
- Multimode fiber operation
- Duplex LC connector
- Up to 1,000m over OM4 fiber
- Up to 550m over OM3 fiber
- Up to 275m over OM1 fiber
- Standard SFP form factor
- Hot-swappable installation
- Low 1.1W power consumption
- RoHS compliant
- Designed for compatible NETGEAR switches
Applications
- Gigabit Ethernet Switch Uplinks
- Enterprise LAN Networking
- Data Center Networking
- Campus Network Backbones
- Switch-to-Switch Connections
- Server-to-Switch Fiber Links
- Network Distribution Links
- Building-to-Building Fiber Connections
- Storage and Infrastructure Networks
- Managed Switch Fiber Connectivity
1Gbps 1000BASE-SX Connectivity
The AGM731F supports 1Gbps Ethernet using the IEEE 802.3z 1000BASE-SX standard. This standard is designed for Gigabit Ethernet transmission over multimode optical fiber and is widely deployed in enterprise and data-center networks.
The optical module provides full-duplex Gigabit Ethernet operation, allowing simultaneous transmission and reception of network traffic over separate optical fibers.
850nm Multimode Fiber
The AGM731F is an 850nm multimode fiber transceiver. It is designed for common multimode fiber infrastructure such as OM1, OM3 and OM4.
Fiber grade has a direct effect on the maximum supported link distance. OM4 provides the longest specified reach for this module, while older OM1 infrastructure supports shorter distances.
Transmission Distance
NETGEAR specifies the following maximum operating distances for AGM731F:
| Fiber Type | Maximum Distance |
|---|
| 50/125µm OM4 | Up to 1,000m |
| 50/125µm OM3 | Up to 550m |
| 62.5/125µm OM1 | Up to 275m |
These distances are based on NETGEAR's published specifications. Actual link distance can vary according to fiber attenuation, connector loss, patch panels, splices and installation quality. :contentReference[oaicite:1]{index=1}
Duplex LC Connector
The AGM731F uses a duplex LC optical connector. The two LC interfaces provide separate transmit and receive optical paths for the full-duplex Gigabit Ethernet connection.
Use a compatible multimode LC-to-LC fiber patch cable or appropriate fiber infrastructure when deploying the module.
Standard SFP Form Factor
The AGM731F uses the Small Form-factor Pluggable (SFP) form factor. This compact design allows compatible NETGEAR switches to support modular fiber connectivity without requiring dedicated fixed fiber ports.
NETGEAR describes the AGM731F as a plug-in SFP module and specifies it as hot-swappable. :contentReference[oaicite:2]{index=2}
NETGEAR Switch Compatibility
NETGEAR specifies AGM731F for compatible managed and smart switches with SFP interfaces. NETGEAR's support documentation also lists AGM731F as a supported 1000BASE-SX module for selected M6100 series switches. :contentReference[oaicite:3]{index=3}
NETGEAR additionally lists AGM731F among the supported 1G fiber SFP modules for selected newer smart-switch platforms. :contentReference[oaicite:4]{index=4}
Always check the exact switch model and firmware compatibility before installation.
Gigabit Fiber Networking
The AGM731F is an effective choice for extending Gigabit Ethernet over multimode fiber. It can be used to connect switches located within the supported optical distance or to provide fiber uplinks from compatible managed switching platforms.
- Switch-to-switch uplinks
- Distribution-to-access switch connections
- Server-to-switch links
- Data-center rack connectivity
- Campus network links
- Enterprise LAN fiber uplinks
Hot-Swappable Design
The AGM731F is designed for convenient installation in compatible SFP interfaces. NETGEAR's installation guide specifies that the module can be inserted into an SFP slot and removed using its integrated latch mechanism. :contentReference[oaicite:5]{index=5}
Low Power Consumption
NETGEAR specifies approximately 1.1W power consumption for the AGM731F. This relatively low power requirement makes it suitable for high-density switch environments where many SFP ports may be populated simultaneously. :contentReference[oaicite:6]{index=6}
NETGEAR AGM731F vs AGM732F
| Feature |
AGM731F |
AGM732F |
| Speed |
1Gbps |
1Gbps |
| Standard |
1000BASE-SX |
1000BASE-LX |
| Fiber |
Multimode |
Single-mode |
| Wavelength |
850nm |
1310nm |
| Connector |
Duplex LC |
Duplex LC |
| Reach |
Up to 1,000m OM4 |
Up to 10km |
| Typical Application |
Short/medium-range fiber |
Longer-range fiber |
AGM731F is the appropriate choice when multimode fiber is available and the link distance falls within its supported range. AGM732F is intended for longer-distance single-mode fiber connectivity. NETGEAR's catalog lists these two modules as 1000BASE-SX and 1000BASE-LX respectively. :contentReference[oaicite:7]{index=7}
NETGEAR AGM731F vs AGM734
| Feature |
AGM731F |
AGM734 |
| Speed |
1Gbps |
1Gbps |
| Standard |
1000BASE-SX |
1000BASE-T |
| Media |
Multimode Fiber |
Copper |
| Connector |
Duplex LC |
RJ-45 |
| Maximum Reach |
Up to 1,000m OM4 |
Up to 100m |
| Typical Use |
Fiber Ethernet |
Copper Ethernet |
Choose AGM731F for multimode optical connectivity and AGM734 when a 1000BASE-T copper RJ-45 connection is required. NETGEAR's product catalog lists AGM731F as 1000BASE-SX and AGM734 as 1000BASE-T. :contentReference[oaicite:8]{index=8}
Benefits
- Reliable 1Gbps fiber connectivity
- 1000BASE-SX standards-based operation
- 850nm multimode optics
- Duplex LC interface
- Up to 1km OM4 reach
- Compatible with common OM3 and OM1 infrastructure
- Compact SFP form factor
- Hot-swappable installation
- Low 1.1W power consumption
- Suitable for enterprise and data-center networks
Compatibility
- Compatible NETGEAR Fully Managed Switches
- Compatible NETGEAR Smart Switches
- Selected NETGEAR M6100 Series switches
- Selected NETGEAR M5300 Series switches
- NETGEAR JGS524F
- Compatible SFP interfaces supporting 1000BASE-SX
NETGEAR's official AGM731F page states that the module fits SFP interfaces of its fully managed and smart switches and the JGS524F. :contentReference[oaicite:9]{index=9}
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies NETGEAR SFP/SFP+ transceivers, managed switches, networking accessories, enterprise network hardware and data-center connectivity products in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and after-sales support.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is NETGEAR AGM731F?
AGM731F is a NETGEAR 1Gbps 1000BASE-SX multimode fiber SFP transceiver.
Q2: What speed does AGM731F support?
It supports 1Gbps Gigabit Ethernet.
Q3: What Ethernet standard does AGM731F use?
It supports IEEE 802.3z 1000BASE-SX.
Q4: What wavelength does AGM731F use?
The module uses an 850nm optical interface.
Q5: What type of fiber does AGM731F require?
It is designed for multimode fiber, including OM1, OM3 and OM4.
Q6: What connector does AGM731F use?
It uses a duplex LC optical connector.
Q7: What is the maximum distance?
NETGEAR specifies up to 1,000m on OM4, 550m on OM3 and 275m on OM1 multimode fiber.
Q8: Is AGM731F compatible with NETGEAR switches?
Yes. NETGEAR specifies AGM731F for compatible managed and smart switch SFP interfaces.
Q9: Is AGM731F single-mode or multimode?
AGM731F is a multimode 1000BASE-SX SFP. For single-mode 1Gbps connectivity, NETGEAR offers the AGM732F 1000BASE-LX module.
Q10: Is AGM731F hot-swappable?
Yes. NETGEAR's installation documentation identifies the module as hot-swappable.
Q11: What is the difference between AGM731F and AGM732F?
AGM731F is 1000BASE-SX multimode fiber at 850nm, while AGM732F is 1000BASE-LX single-mode fiber at 1310nm with up to 10km reach.
Q12: Where can I buy NETGEAR AGM731F in Bangladesh?
You can contact Datacom Technologies (BD) for NETGEAR SFP transceivers, managed switches and enterprise networking products.
