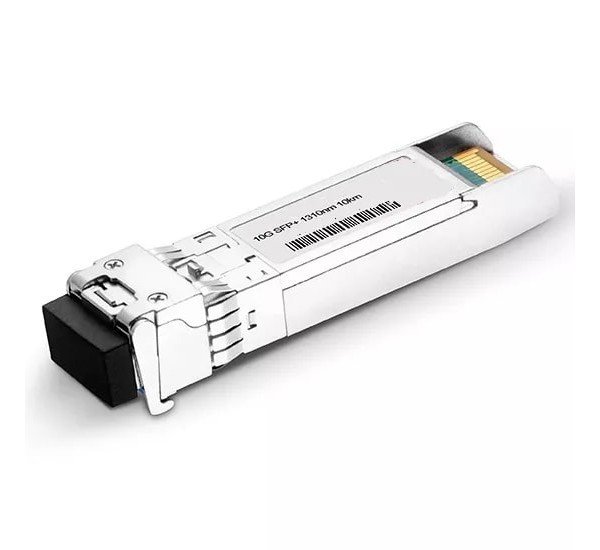

Palo Alto PAN-SFP-PLUS-LR SFP+ 10KM Transceiver

About Palo Alto PAN-SFP-PLUS-LR 10Gbps 10km 10GBASE-LR SFP+ Optical Transceiver in Bangladesh

The Palo Alto PAN-SFP-PLUS-LR is a 10Gbps long-range SFP+ optical transceiver designed for high-speed fiber connectivity across compatible Palo Alto Networks firewall and networking platforms. It supports the 10GBASE-LR standard and provides up to 10km transmission over Single-Mode Fiber (SMF) using a 1310nm optical wavelength.

The transceiver uses a duplex LC optical connector and SFP+ form factor, making it suitable for enterprise networks, data centers, campus backbones and long-distance firewall uplinks where 10Gbps single-mode fiber connectivity is required.

Palo Alto Networks documentation identifies PAN-SFP-PLUS-LR as a 10 Gigabit Fiber Transceiver – Long Haul with a 1310nm wavelength and maximum reach of 10km. It supports 10GBASE-LR for 10GbE applications. ([Palo Alto Networks](https://live.paloaltonetworks.com/twzvq79624/attachments/twzvq79624/members_discuss/15655/1/Supported_fiber_transceivers_v2.pdf))

Palo Alto PAN-SFP-PLUS-LR Specifications & Features

Overview

The Palo Alto PAN-SFP-PLUS-LR provides 10Gbps Ethernet connectivity over single-mode fiber for links up to 10 kilometers. Its 1310nm optical interface and duplex LC connector make it suitable for long-distance fiber links between compatible Palo Alto Networks equipment and switches, routers or other 10GbE network devices.

The LR designation indicates Long Reach. Compared with short-range 10GBASE-SR optics designed for multimode fiber, PAN-SFP-PLUS-LR is intended for single-mode fiber infrastructure and substantially longer link distances.

Buy Palo Alto PAN-SFP-PLUS-LR in Bangladesh

Purchase the Palo Alto PAN-SFP-PLUS-LR 10Gbps 10km SFP+ Optical Transceiver from Datacom Technologies (BD). We supply Palo Alto Networks-compatible optical transceivers, SFP/SFP+ modules, enterprise firewalls and data-center networking products in Bangladesh with competitive pricing, technical consultation, deployment assistance and nationwide delivery.

Key Features

• 10Gbps high-speed Ethernet connectivity
• 10GBASE-LR optical standard
• Up to 10km transmission distance
• 1310nm optical wavelength
• Single-Mode Fiber (SMF)
• Duplex LC connector
• SFP+ form factor
• IEEE 802.3ae compliant
• Designed for compatible Palo Alto Networks platforms
• Suitable for long-distance firewall and network uplinks
• Ideal for enterprise and data-center fiber infrastructure

Applications

• Palo Alto Networks Firewalls
• 10GbE Firewall Uplinks
• Enterprise Network Backbone
• Data Center Interconnects
• Campus Network Backbones
• Core Switch Connections
• Router-to-Switch Connections
• Long-Distance Fiber Links
• ISP Network Infrastructure
• Enterprise WAN Infrastructure

10Gbps 10GBASE-LR Connectivity

The PAN-SFP-PLUS-LR is designed for 10 Gigabit Ethernet connectivity using the IEEE 802.3ae 10GBASE-LR standard. It provides a high-speed optical link suitable for bandwidth-intensive enterprise network applications.

With support for up to 10km over single-mode fiber, the module can connect network equipment located in different rooms, floors, buildings or campus locations when the fiber infrastructure and optical budget are appropriate.

1310nm Optical Wavelength

The PAN-SFP-PLUS-LR operates at a nominal wavelength of 1310nm. This wavelength is widely used for long-distance single-mode fiber Ethernet applications.

The Palo Alto Networks fiber-transceiver specification lists a 1310nm wavelength and a reach of up to 10km for the PAN-SFP-PLUS-LR. :contentReference[oaicite:2]{index=2}

Single-Mode Fiber

The PAN-SFP-PLUS-LR is designed for Single-Mode Fiber (SMF). SMF provides the optical characteristics required for long-distance 10Gbps Ethernet links.

Use compatible single-mode fiber patch cables with duplex LC connectors. The installed fiber infrastructure, connector quality and optical loss should be suitable for the intended 10km link.

Duplex LC Connector

The transceiver uses a duplex LC optical interface. One fiber carries the transmit signal and the other carries the receive signal, providing a full-duplex 10Gbps Ethernet connection.

Duplex LC single-mode fiber patch cables are therefore required for a standard PAN-SFP-PLUS-LR connection.

10km Long-Reach Performance

The PAN-SFP-PLUS-LR is specified for transmission distances of up to 10km. Palo Alto Networks documentation lists the reach as ≤10km for 10GBASE-LR operation. :contentReference[oaicite:3]{index=3}

Actual achievable distance depends on fiber attenuation, connector loss, splice loss, optical power budget and the characteristics of the connected equipment.

Hot-Pluggable SFP+ Form Factor

The SFP+ form factor provides a compact, pluggable interface for 10Gbps optical networking. Compatible PAN-SFP-PLUS-LR specifications identify the module as hot-pluggable and compliant with SFP+ multi-source standards. :contentReference[oaicite:4]{index=4}

Follow Palo Alto Networks' recommended procedures when installing or removing transceivers from a firewall or network appliance.

Palo Alto Networks Compatibility

Palo Alto Networks' product documentation identifies PAN-SFP-PLUS-LR as an official 10Gbps long-haul fiber transceiver. Palo Alto's pricing documentation lists the module for its enterprise firewall portfolio, including PA-7000, PA-5400, PA-5200, PA-5000, PA-3400 and PA-3200 Series platforms, with platform-specific compatibility depending on the interface configuration. :contentReference[oaicite:5]{index=5}

Always verify the exact firewall model, interface and PAN-OS/hardware compatibility requirements before purchasing or installing an optical module.

Enterprise Network Connectivity

The PAN-SFP-PLUS-LR is suitable for high-bandwidth enterprise network links where 10Gbps performance and long-distance single-mode fiber connectivity are required.

• Firewall-to-core-switch connections
• Firewall-to-router uplinks
• Data-center backbone links
• Campus backbone connections
• Core network interconnects
• Server aggregation networks
• ISP and carrier network infrastructure
• Long-distance enterprise fiber links

Optical Link Budget

Published technical specifications for PAN-SFP-PLUS-LR-compatible modules indicate an optical link budget of approximately 6dB, with 1310nm DFB transmission and PIN receiver technology. :contentReference[oaicite:6]{index=6}

When planning a 10km fiber link, calculate the total optical loss from fiber attenuation, connectors, splices and patch panels to ensure it remains within the supported optical budget.

Digital Optical Monitoring

Compatible PAN-SFP-PLUS-LR modules are commonly specified with Digital Optical Monitoring (DOM/DDM), allowing network equipment to report optical parameters such as transmit power, receive power and module temperature when supported by the host platform. :contentReference[oaicite:7]{index=7}

Actual monitoring availability depends on the transceiver revision and the capabilities of the connected Palo Alto Networks platform.

PAN-SFP-PLUS-LR vs PAN-SFP-PLUS-SR

Palo Alto's product documentation specifies PAN-SFP-PLUS-LR for 10km single-mode fiber and PAN-SFP-PLUS-SR for 300m OM3 multimode fiber. :contentReference[oaicite:8]{index=8}

PAN-SFP-PLUS-LR vs PAN-SFP-PLUS-ER

Palo Alto's pricing documentation identifies PAN-SFP-PLUS-ER as a 40km 10GBASE-ER optical transceiver, while PAN-SFP-PLUS-LR is specified for 10km 10GBASE-LR links. :contentReference[oaicite:9]{index=9}

Benefits

• 10Gbps high-speed network connectivity
• 10km long-distance optical reach
• 1310nm single-mode fiber transmission
• 10GBASE-LR standards-based operation
• Duplex LC optical connector
• Compact SFP+ form factor
• Suitable for enterprise firewall uplinks
• Ideal for data-center and campus backbones
• Supports long-distance single-mode fiber infrastructure
• Designed for compatible Palo Alto Networks platforms

Compatibility

• Palo Alto Networks PA-7000 Series
• Palo Alto Networks PA-5400 Series
• Palo Alto Networks PA-5200 Series
• Palo Alto Networks PA-5000 Series
• Palo Alto Networks PA-3400 Series
• Palo Alto Networks PA-3200 Series
• Other compatible Palo Alto Networks 10Gbps SFP+ interfaces

The compatibility list is representative rather than exhaustive. Palo Alto Networks platform support can vary by model and interface. Verify the exact firewall model and port requirements before purchase.

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Palo Alto Networks optical transceivers, SFP/SFP+ modules, enterprise firewalls, network security hardware and data-center networking products in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is Palo Alto PAN-SFP-PLUS-LR?
PAN-SFP-PLUS-LR is a Palo Alto Networks 10Gbps long-range SFP+ optical transceiver designed for 10GBASE-LR connectivity.

Q2: What speed does PAN-SFP-PLUS-LR support?
It supports 10Gbps Ethernet.

Q3: What is the maximum distance?
The specified reach is up to 10km over compatible single-mode fiber.

Q4: What wavelength does it use?
The module uses a 1310nm optical wavelength.

Q5: What type of fiber does PAN-SFP-PLUS-LR require?
It is designed for Single-Mode Fiber (SMF).

Q6: What connector does it use?
It uses a duplex LC optical connector.

Q7: What Ethernet standard does it support?
It supports IEEE 802.3ae 10GBASE-LR.

Q8: Is PAN-SFP-PLUS-LR suitable for 10km links?
Yes. Palo Alto Networks specifies a reach of up to 10km for this LR transceiver.

Q9: What is the difference between LR and SR?
LR is designed for longer-distance single-mode fiber links up to 10km, while SR is designed for shorter multimode-fiber links.

Q10: What is the difference between LR and ER?
PAN-SFP-PLUS-LR is specified for up to 10km, while PAN-SFP-PLUS-ER is designed for up to 40km.

Q11: Is PAN-SFP-PLUS-LR suitable for Palo Alto firewalls?
Yes, it is an official Palo Alto Networks transceiver, but exact platform and port compatibility should be verified before installation.

Q12: Where can I buy Palo Alto PAN-SFP-PLUS-LR in Bangladesh?
You can contact Datacom Technologies (BD) for Palo Alto Networks SFP/SFP+ transceivers, firewalls, optical networking products and enterprise data-center connectivity solutions.
