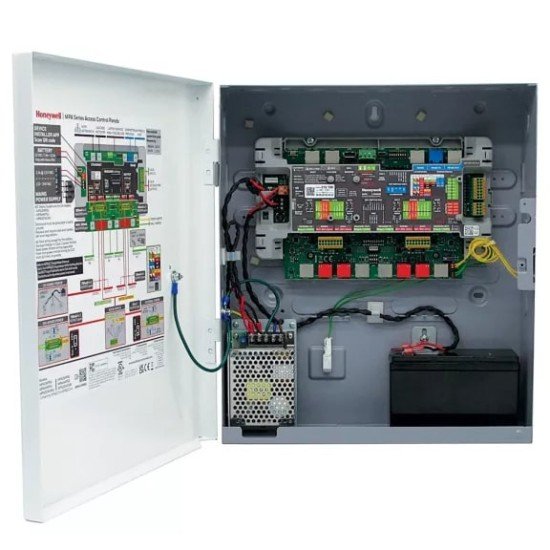

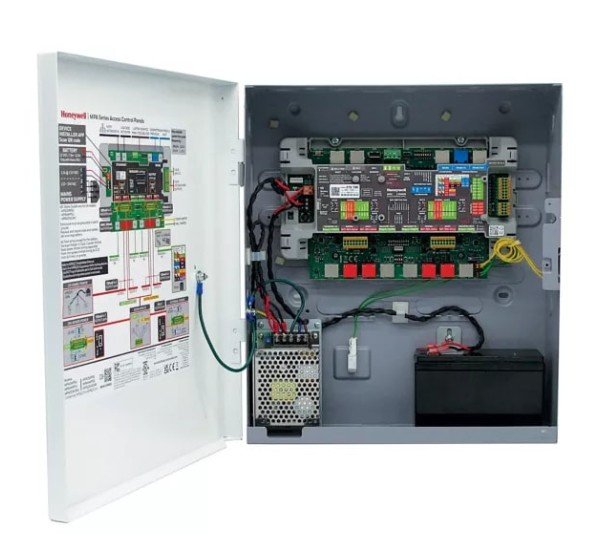

Honeywell MPA2 Door Access Controller
Honeywell MPA2 Access Controller is a reliable and scalable door access solution designed to enhance security for businesses. It supports multiple credential types and easy integration with existing security systems. Ideal for controlling access efficiently while ensuring safety in offices and facilities.
✅ Honeywell MPA2 Door Controller– Specification Table
| Feature |
Specification |
| Model |
Honeywell MPA2 |
| Access Points Supported |
2 doors (expandable to 4 with additional modules) |
| Credential Support |
Proximity cards, Smart cards, PIN codes |
| Communication Interface |
Ethernet (TCP/IP), RS-485, USB |
| Reader Compatibility |
Wiegand and Clock-and-Data readers |
| Inputs |
8 supervised (door contacts, REX, etc.) |
| Outputs |
6 relay outputs (for locks, alarms, etc.) |
| Event Storage |
Up to 100,000 events |
| User Capacity |
Up to 250,000 cardholders |
| Power Supply |
12V DC, 1.5A |
| Software Compatibility |
WIN-PAK® and Pro-Watch® |
| Enclosure |
Metal cabinet with lock and tamper switch |
| Operating Temperature |
0°C to 50°C |
| Certifications |
UL294, CE, RoHS |
? Honeywell MPA2 Description
The
Honeywell MPA2 Access Control System is a powerful, scalable, and cost-effective solution designed for small to medium-sized enterprises looking to secure their facilities with robust access management. Supporting up to two doors out of the box (expandable to four), the MPA2 controller offers seamless integration with Honeywell's WIN-PAK® and Pro-Watch® software platforms, allowing centralized monitoring, management, and reporting.
Equipped with multiple supervised inputs and relay outputs, the
MPA2 enables detailed control over door locks, alarms, and request-to-exit devices. Its support for a wide range of credential types—including proximity cards, smart cards, and PINs—makes it highly adaptable for different user requirements. Communication interfaces like TCP/IP, RS-485, and USB allow for flexible installation across varied IT environments.
The device ensures high data security with encrypted communications and features onboard storage for up to 100,000 events and 250,000 cardholders. Its rugged metal enclosure with tamper detection enhances physical security, making it suitable for critical infrastructure, offices, educational institutions, and commercial buildings.
Key Features
- Flexible Architecture: Supports up to 2 doors and expandable to 4 readers.
- Web-Based Interface: Built-in web server for easy configuration and management.
- Enhanced Security: AES 128-bit encryption and secure web communication (HTTPS).
- Event Buffering: Stores up to 250,000 events even during network outages.
- Powerful Integration: Compatible with Honeywell’s WIN-PAK® software.
- Remote Management: Configure and manage access from anywhere.
- Multiple User Levels: Supports role-based access control.
- Expandable I/O: Inputs/outputs can be expanded with additional modules.
Where it Can Be Used?
- Corporate Offices – For employee access and visitor management.
- Educational Institutions – To secure classrooms, labs, and dorms.
- Healthcare Facilities – Ensure access only to authorized personnel in critical areas.
- Data Centers – Maintain strict access control to secure sensitive infrastructure.
- Retail & Warehouses – Monitor and control inventory zones and restricted areas.
Installation Step
- Mount the MPA2 panel in a secure and accessible location.
- Connect power supply and backup battery.
- Wire the doors, readers, and lock mechanisms.
- Connect to the network via Ethernet.
- Access the web interface using a browser and IP address.
- Configure doors, schedules, and user credentials.
- Test access control functionality and finalize installation.
User Experience
Users benefit from:
- Intuitive browser-based management with no software installation needed.
- Fast card reading and door response times.
- Real-time access logs and status monitoring.
- Simple user credential enrollment and schedule creation.
- Reliable operation even during power or network interruptions.
Why Choose Honeywell MPA2 Access Control?
The Honeywell MPA2 Access Control panel offers a modern, secure, and scalable solution for facilities of all sizes. Its web-based platform eliminates the need for client software, making installation and management simpler. With robust security features, remote access capabilities, and compatibility with existing Honeywell systems, MPA2 is ideal for upgrading outdated access systems or deploying new ones in secure environments.
Buy Honeywell MPA2 Door Access Controller at the Best Price from Datacom BD Online
In Bangladesh, you can get
Honeywell MPA2 Door Access Controller From
Datacom. We have a large collection of latest Honeywell Door Controller to purchase. Order Online Or Visit our Office to get yours at lowest price. The Honeywell MPA2 Access Control comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Honeywell MPA2 Door Access Controller in Bangladesh?
The estimated price of
Honeywell MPA2 Door Access Controller in Bangladesh is 36,500৳. You can buy the Honeywell MPA2 Access Controller at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
