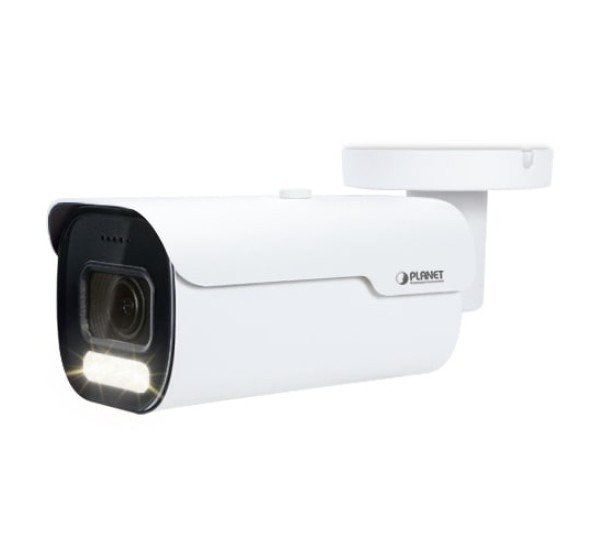

PLANET ICA-M3580P 5MP Bullet IP Camera
The PLANET ICA-M3580P 5MP Bullet IP Camera delivers exceptional image quality with its 1/2.8" SONY STARVIS CMOS sensor, offering resolutions up to 2592 x 1944 pixels. Equipped with a motorized 5x optical zoom lens, remote focus, and advanced smart features like motion detection, this weatherproof camera ensures clear monitoring in any environment. With ONVIF compliance and powerful IR illumination, it’s the perfect choice for reliable surveillance.
Specification Table
| Feature |
Details |
| Image Sensor |
1/2.8" 5MP SONY STARVIS Back-illuminated CMOS sensor |
| Resolution |
Up to 2592 x 1944 pixels |
| Lens |
2.7–13.5mm motorized zoom lens with autofocus (5x optical zoom) |
| Minimum Illumination |
0.003 lux (color) @ F1.6; 0 lux with IR on |
| IR & LED Illumination |
Smart IR up to 50 meters; 4000K warm white LED up to 40 meters |
| Video Compression |
H.265(+), H.264(+), MJPEG, AVI |
| Frame Rate |
Up to 30 fps at full resolution |
| WDR / 3DNR |
Yes / Yes |
| Audio |
One-way audio input |
| Power Supply |
IEEE 802.3af PoE |
| Operating Temperature |
-20°C to 60°C |
| Ingress Protection |
IP67-rated weatherproof metal housing |
| Smart Features |
Motion detection, ROI, privacy masking, video tampering, defog, OSD overlay |
| Remote Focus/Zoom |
Yes, via web interface |
| ONVIF Compliance |
Yes |
? Description
The
PLANET ICA-M3580P is a high-performance 5MP bullet IP camera designed for robust outdoor surveillance. Equipped with a 1/2.8" SONY STARVIS back-illuminated CMOS sensor, it delivers crisp and detailed images even in challenging lighting conditions. The camera features a 2.7–13.5mm motorized zoom lens with autofocus, allowing for flexible monitoring over various distances.
For low-light and nighttime scenarios, the ICA-M3580P incorporates Smart IR technology with a range of up to 50 meters, and a 4000K warm white LED illuminator effective up to 40 meters, ensuring clear visibility regardless of ambient light. The camera supports advanced video compression formats including H.265(+), H.264(+), and MJPEG, optimizing bandwidth and storage without compromising image quality.
Built to withstand harsh environments, its IP67-rated metal housing protects against dust and water ingress, operating reliably in temperatures ranging from -20°C to 60°C. Additional features such as Wide Dynamic Range (WDR), 3D Noise Reduction (3DNR), motion detection, and privacy masking enhance its surveillance capabilities. With support for IEEE 802.3af PoE, installation is simplified, requiring only a single cable for power and data transmission. The ICA-M3580P is ONVIF compliant, ensuring compatibility with a wide range of network video recorders and management software, making it a versatile choice for various security applications.
? Key Features
- 5 Megapixel Resolution (2592 x 1944): Delivers crisp and detailed video quality.
- Motorized Varifocal Lens (2.7~13.5mm): Enables remote zoom and focus adjustments.
- Smart IR LEDs (up to 50 meters): Ensures clear night vision with intelligent IR control.
- WDR (Wide Dynamic Range): Handles challenging lighting conditions effectively.
- IP66 Weatherproof Housing: Suitable for harsh outdoor environments.
- H.265/H.264/MJPEG Compression: Reduces bandwidth and storage usage.
- PoE Support (IEEE 802.3af): Simplifies installation with single cable for power and data.
- ONVIF Compliance: Ensures compatibility with various network video recorders (NVRs).
- Smart Event Detection: Includes motion, tamper, and intrusion detection.
? Where It Can Be Used?
- Commercial Buildings: Office exteriors, parking lots, loading docks.
- Residential Areas: Gated communities, driveways, backyard monitoring.
- Retail Stores: Entrance monitoring, loss prevention.
- Industrial Sites: Perimeter and asset protection.
- Public Spaces: Parks, transit stations, municipal buildings.
? Installation Steps
- Choose Mounting Location: Preferably 8-10 feet above the ground with a clear field of view.
- Install Mounting Bracket: Use screws and anchors appropriate for the surface.
- Connect Ethernet Cable: Use a Cat5e/Cat6 cable for PoE connection.
- Configure Network Settings: Use PLANET's IP utility or browser-based interface.
- Adjust Camera Angle & Focus: Use the motorized lens function remotely.
- Integrate with NVR or VMS: Ensure it supports ONVIF for best compatibility.
- Finalize Settings: Configure motion detection, schedules, and notifications.
? User Experience
- Ease of Use: Intuitive web interface and remote zoom/focus make operation simple.
- Clarity: 5MP resolution gives users confidence in identifying faces and license plates.
- Reliability: IP66-rated housing performs well in rain, dust, and extreme temperatures.
- Security: Advanced event detection and alerts keep users informed in real-time.
❓ Why Choose PLANET ICA-M3580P?
- ✔️ High-Resolution Imaging with excellent low-light performance.
- ✔️ PoE support reduces installation complexity and cost.
- ✔️ Motorized lens and remote configuration simplify maintenance.
- ✔️ Durable, weather-resistant design for long-term outdoor use.
- ✔️ Excellent value for small-to-mid scale security deployments.
Buy PLANET ICA-M3580P 5MP Bullet IP Camera at the Best Price from Datacom BD Online
In Bangladesh, you can get
PLANET ICA-M3580P 5MP Bullet IP Camera from
Datacom. We have a large collection of latest
PLANET IP Camera to purchase. Order Online Or Visit our Office to get yours at lowest price. The PLANET ICA-M3580P Bullet IP Camera comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of PLANET ICA-M3580P 5MP Bullet IP Camera in Bangladesh?
The estimated price of
PLANET ICA-M3580P 5MP Bullet IP Camera in Bangladesh is 20,000৳. You can buy the PLANET ICA-M3580P Bullet IP Camera at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
