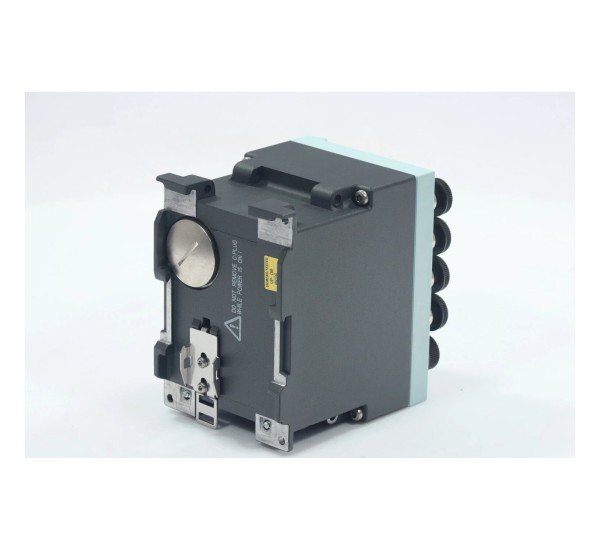

SCALANCE X208PRO Managed IE Switch
Boost your industrial network’s reliability with the
SCALANCE X208PRO Managed IE switch (6GK5208‑0HA10‑2AA6), featuring eight rugged M12 D‑coded Fast Ethernet ports and a 1.6 Gbit/s switching capacity for seamless, high‑speed data flow. Designed for harsh environments, this PROFINET‑ready switch supports up to 8,000 MAC addresses, enabling scalable, secure device integration on the factory floor. Achieve uninterrupted OT connectivity and easy remote management while meeting Industry 4.0 demands for deterministic, real‑time communication.
Specification
| Feature |
Specification |
| Product Type |
Managed Industrial Ethernet Switch |
| Model Number |
SCALANCE X208PRO |
| Part Number |
6GK5208-0HA10-2AA6 |
| Number of Ports |
8 Fast Ethernet Ports |
| Port Type |
M12, D-coded, 10/100 Mbps |
| Switching Capacity |
1.6 Gbit/s |
| MAC Addresses |
Up to 8,000 |
| Network Standards |
IEEE 802.3, 802.3u, 802.3x |
| Management |
SNMP, Web-based Management, PROFINET, CLI |
| Redundancy Protocols |
MRP (Media Redundancy Protocol), RSTP |
| Diagnostics |
LED indicators, Signaling contact for fault/alarm |
| Power Supply |
Redundant 24 V DC |
| Protection Class |
IP65/IP67 (dust-tight, water-resistant) |
| Operating Temperature |
-40 °C to +70 °C |
| Mounting |
Direct mounting via screws or adapter plates |
| Certifications |
CE, cULus, FM, ATEX Zone 2 (for hazardous areas) |
| Dimensions (W x H x D) |
Approx. 184 x 60 x 32 mm |
| Weight |
Approx. 0.7 kg |
SCALANCE X208PRO Managed IE Switch Description
The Siemens
SCALANCE X208PRO is a rugged, managed Industrial Ethernet (IE) switch designed for harsh industrial environments. With its IP65/IP67-rated housing, it resists dust, water, and vibration, making it ideal for applications in transportation, manufacturing, and process automation. Equipped with eight 10/100 Mbit/s M12 D-coded ports, it ensures secure and reliable connections in challenging conditions. The switch supports PROFINET IO integration, facilitating seamless communication within industrial networks. Features like LED diagnostics and an error signaling contact enable quick fault detection and troubleshooting. Its redundant power supply enhances reliability, ensuring continuous operation even in the event of a power failure. The SCALANCE X208PRO also supports network management capabilities and can operate in a redundant ring configuration, providing network resilience. Optional accessories include dust caps for port protection and a C-plug for additional functionality. This switch is a robust solution for maintaining high-performance network connectivity in demanding industrial settings.
? Key Features
- 8x 10/100 Mbit/s M12 Ports: Provides secure and vibration-resistant connections suitable for industrial settings.
- IP65/67 Protection: Ensures resistance to dust and water, allowing for installation outside control cabinets.
- LED Diagnostics: Facilitates quick status monitoring and troubleshooting.
- Error Signaling Contact: Enables immediate fault detection and response.
- Redundant Power Supply: Offers increased reliability with dual isolated inputs via 4-pin A-coded M12 sockets .
- PROFINET IO Device: Allows seamless integration into Siemens automation systems.
- Network Management Capabilities: Supports Web-Based Management (WBM) and Simple Network Management Protocol (SNMP) for efficient network administration .
- Redundant Ring Operation: Supports ring topologies for enhanced network reliability.
- Dust Caps Included: Protects unused ports from environmental contaminants.
? Application Areas
The SCALANCE X208PRO is ideal for:
- Industrial Automation: Connecting Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), and sensors.
- Transportation Systems: Use in railways and automotive manufacturing where exposure to harsh conditions is common.
- Outdoor Installations: Suitable for environments requiring equipment to withstand dust and water ingress.
- Machine-Level Networking: Facilitates communication between various machine components on the factory floor.
?️ Installation Steps
- Mounting: Secure the switch to a suitable surface or DIN rail, ensuring the mounting can support at least four times the device's weight .
- Power Connection: Connect the power supply using the two 4-pin A-coded M12 sockets. For redundancy, connect both power inputs, which are electrically isolated .
- Network Cabling: Attach Ethernet cables to the M12 ports, ensuring secure connections.
- Grounding: Properly ground the device to prevent electrical hazards.
- Configuration: Access the Web-Based Management interface via a web browser to configure network settings.
?? User Experience
Users benefit from:
- Ease of Monitoring: LED indicators provide immediate visual feedback on network status.
- Simplified Management: Web-Based Management allows for intuitive configuration without the need for specialized software .
- Reliability: Redundant power inputs and support for ring topologies enhance network uptime.
✅ Why Choose SCALANCE X208PRO?
Opting for the SCALANCE X208PRO offers:
- Durability: Designed to withstand harsh industrial environments with its IP65/67 rating.
- Integration: Seamless compatibility with Siemens automation systems via PROFINET.
- Flexibility: Supports various network topologies, including star and ring configurations.
- Maintenance: Features like LED diagnostics and error signaling contacts simplify troubleshooting and reduce downtime.
Buy SCALANCE X208PRO Managed IE Switch at the Best Price from Datacom BD Online
In Bangladesh, you can get original
SCALANCE X208PRO Managed IE switch From
Datacom. We have a large collection of latest Siemens Serial to Ethernet Converter to purchase. Order Online Or Visit our Office to get yours at lowest price. The SCALANCE X208PRO Managed Ethernet switch comes with 1-years warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of SCALANCE X208PRO Managed IE Switch in Bangladesh?
The estimate price
SCALANCE X208PRO Managed IE switch in Bangladesh is 59,900৳. You can buy the SCALANCE X208PRO Managed Ethernet switch at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
